Focus accurate and fast your Celestron SCT telescope using PegasusAstro's powerful motor focus kit SCT.
This high resolution geared box has a 0,06 degree step size can can easily lift more than 6 kg (per cm). Its high torque is suitable for lifting heavy imaging equipment. Moreover motor’s gearbox has a low backlash which can easily tuned using backlash compensation in imaging software. An RJ45 socket pinout can be easily converted to a compatible pinout with Moonlite and Robofocus controllers.

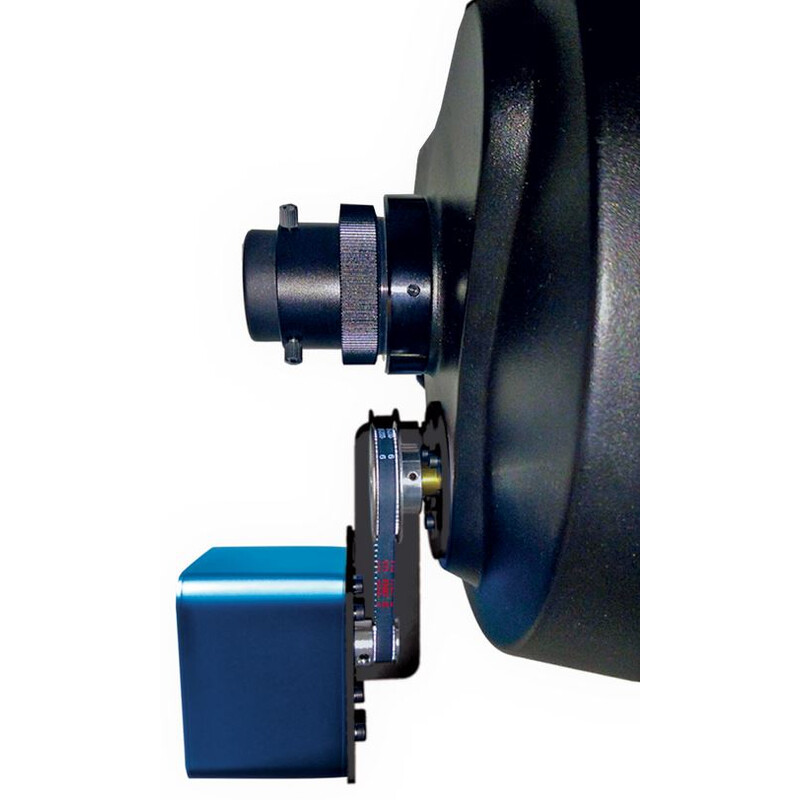

Pulley and Belt design allows the motor to stay away from your filter wheel (and not collide with it) when you use a focal reducer. Its sophisticated bracket design can fit to all Celestron SCTs

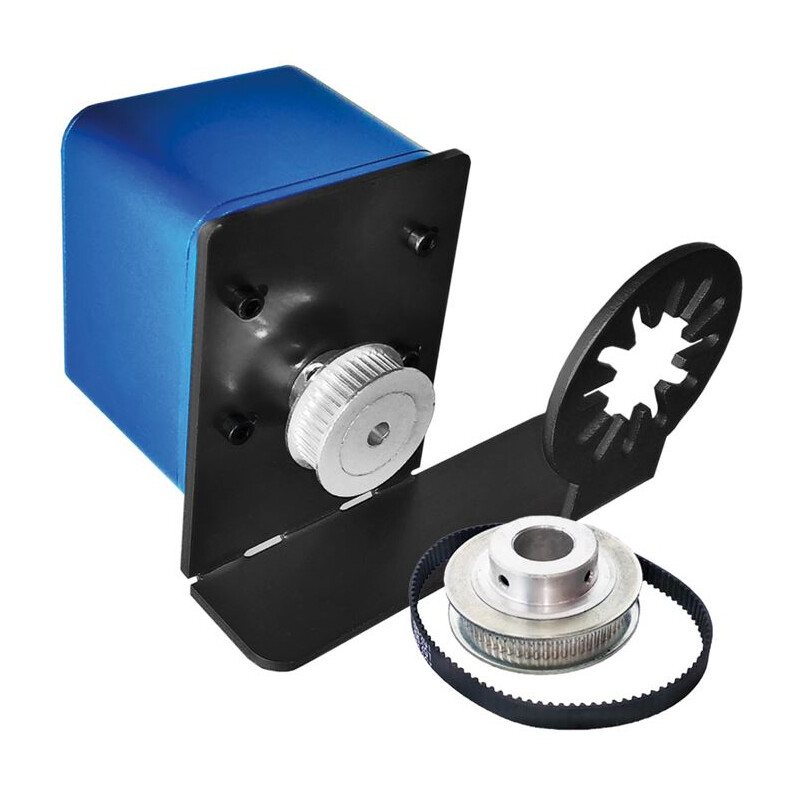

Inside the box:

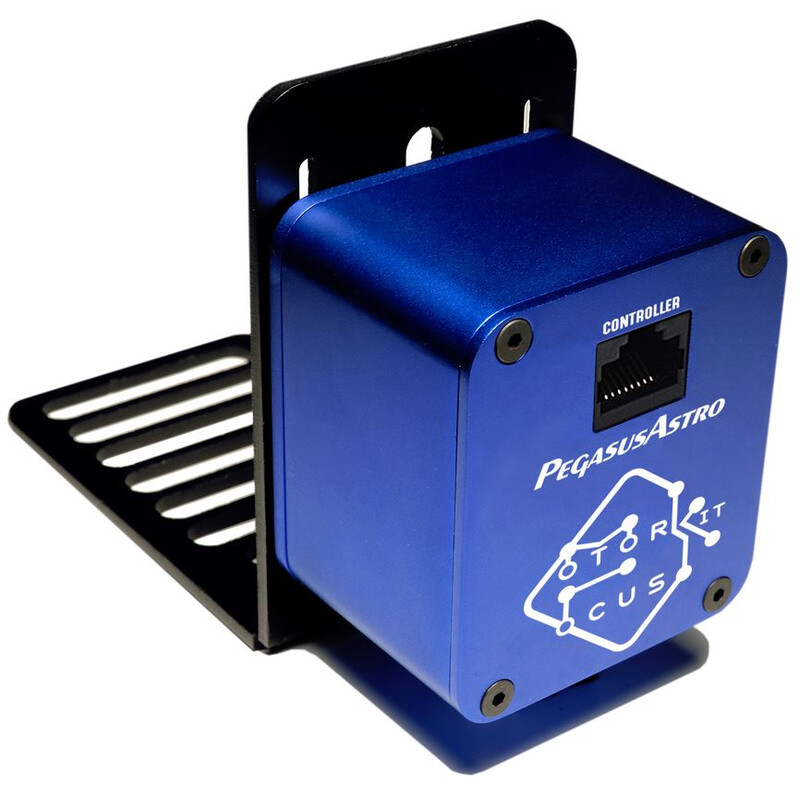

- High resolution geared stepper motor (Step Angle 7.5, Deg 120, Gear Ration 1:120).
- Blue Aluminium Anodised Bracket for Celestron SCT Telescopes
- 20cm 2GT Timing Belt
- 13 mm Pulley 2GT (6”,8”,9.25”) or 22mm Pulley 2GT (11”, 14” Celestron)
- Bolts

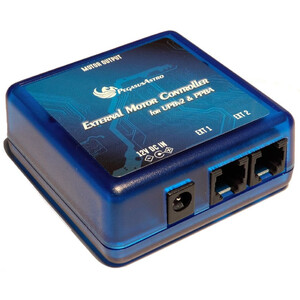

Note: You will need a stepper controller to drive the motor. We recommend PegasusAstro Unità di controllo per motore di messa a fuoco DMFC. Alternatively, you can control this motor with the PegasusAstro Ultimate Powerbox v2 Hub (additional RJ45 to RJ45 cable required).
