Description
Easy to use and handle
The SL-15L’s lightweight design weighs less than 800g and provides easy and versatile operation with a choice of 10x and 16x magnification, 3 slit widths plus spot illumination and a cobalt blue filter using high illumination LED as the light source.
Versatile, portable unit

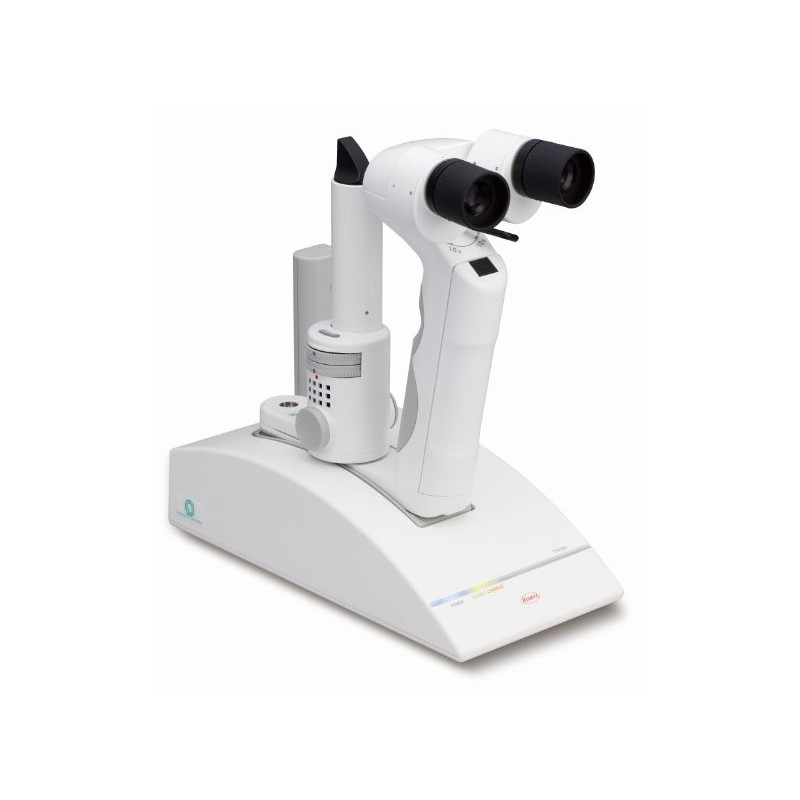

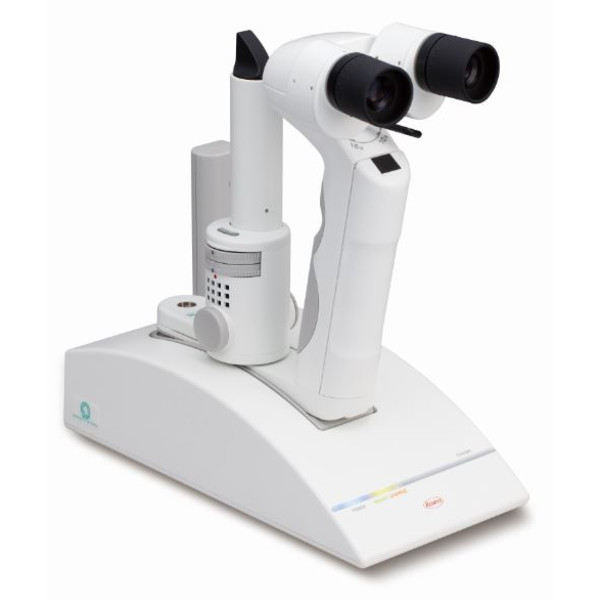

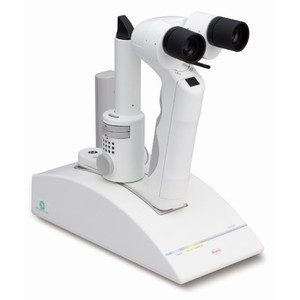

The SL-15L is a compact and portable hand-held slit lamp that is ideal for the domiciliary environment. It can be used in emergencies, with mobility challenges and switching between consultancy rooms. Offering cordless rechargeable operation, the large battery capacity provides long lasting continuous operation of the LED light. The stand doubles as a charger and can accommodate both the main unit and a spare lithium ion battery simultaneously.
Flexible Recording tool
The slit lamp supports digital or video cameras via the optional c-mount camera adaptor for instant imaging.
Kowa’s popular SL-15L slit lamp now comes standard with high illumination LED light. It provides optimum stereoscopic observation with selectable magnifications within a compact, lightweight, portable unit.
- Binocular direct vision type, erected real image
- Angle of convergence: 13°
- 10x and 16x magnification
- Operating distance: Approx. 80 mm (16x) and of object lens approx. 100 mm(10x)
- Reticles: Built in both oculars
- Magnification change: Movable object lens for 2 magnifications
- Range of interpupillary distance adjustment: 50mm to 72mm
- Range of examiner's dioptric projection adjustment: -8D to + 5D
- Slit selection: Turret
- Slit length: Fixed 12mm
- Slit width: 0.1mm, 0.2mm, 0.8mm, 12mm spot
- Light intensity: Selected among; Full, 1/4, and 1/16
- Slit projection angle: Horizontal, ±60°
- Built in blue filter
- Lightweight and user-friendly
- High illumination LED
- Offers up to 480 minutes of continuous operation
- Rechargeable high capacity lithium ion battery
- Optional – Digital Video Camera adapter
Charger/slit lamp stand Output terminal: For charging both built-in battery and extra battery
Input voltage: AC120V, 230V, 50/60 Hz
Input power: 90 VA Dimensions, Weight: Charger: 124(W)x253(D)x 68(H)mm , 1250g/2.73lbs
